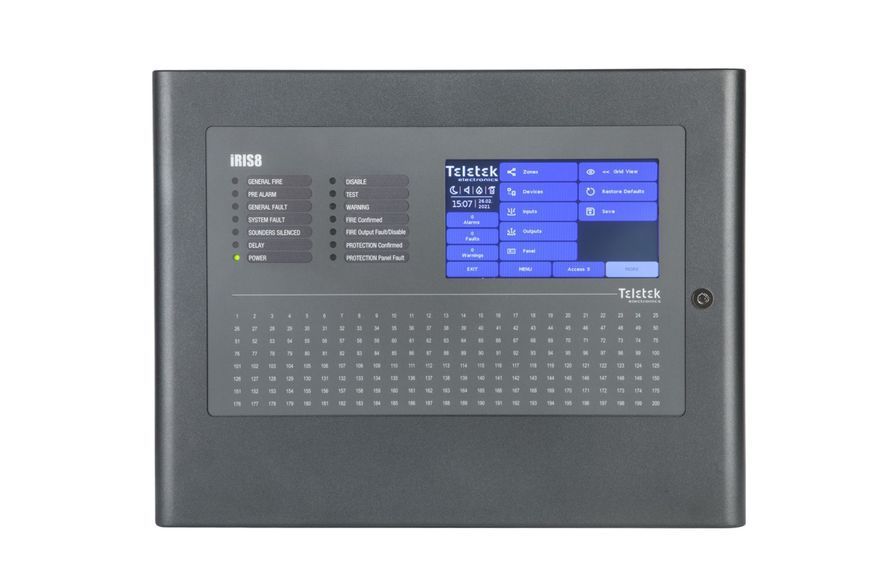

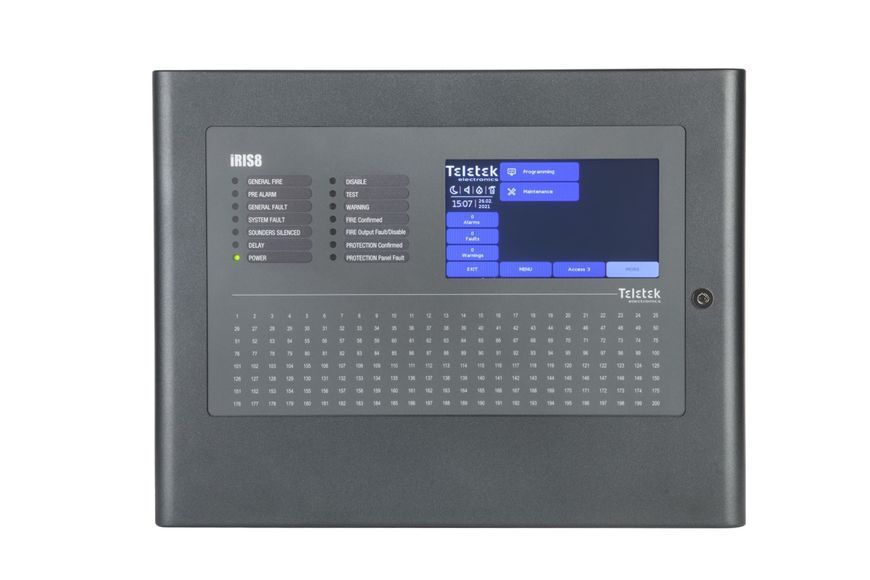

The iRIS8(1-4)L-S addressable control panel is a flexible, modular fire alarm system suitable for large public buildings, office buildings, hotels, warehouses, etc. It complies with the latest EU standards, such as EN 54-2/4 and EN 54-13, to ensure reliability and quality. The panel can be expanded from 1 to 8 loops and supports up to 2000 devices per system and up to 200 zones.
Main characteristics:
1. Loops: 1-8 (TTE protocol)
2. Number of devices: up to 250 devices per loop, total number up to 2000
3. Zones: up to 200 zones
4. Connection: Built-in TCP/IP interface for Ethernet network and optional module for RS485 redundant network. Up to 64 panels can be networked
5. Remote control: The system can be controlled and monitored via the Teletek Cloud Platform or the Teletek PRO mobile app
6. Display: 7-inch TFT 800/480
7. Software: Supported by ProsTE Programming software for configuration and Observer for monitoring
8. Other features: Multilingual support, day/night mode, and 10,000 event memory log
9. Housing: Metal
10. Loops: 1-8 (TTE protocol)
